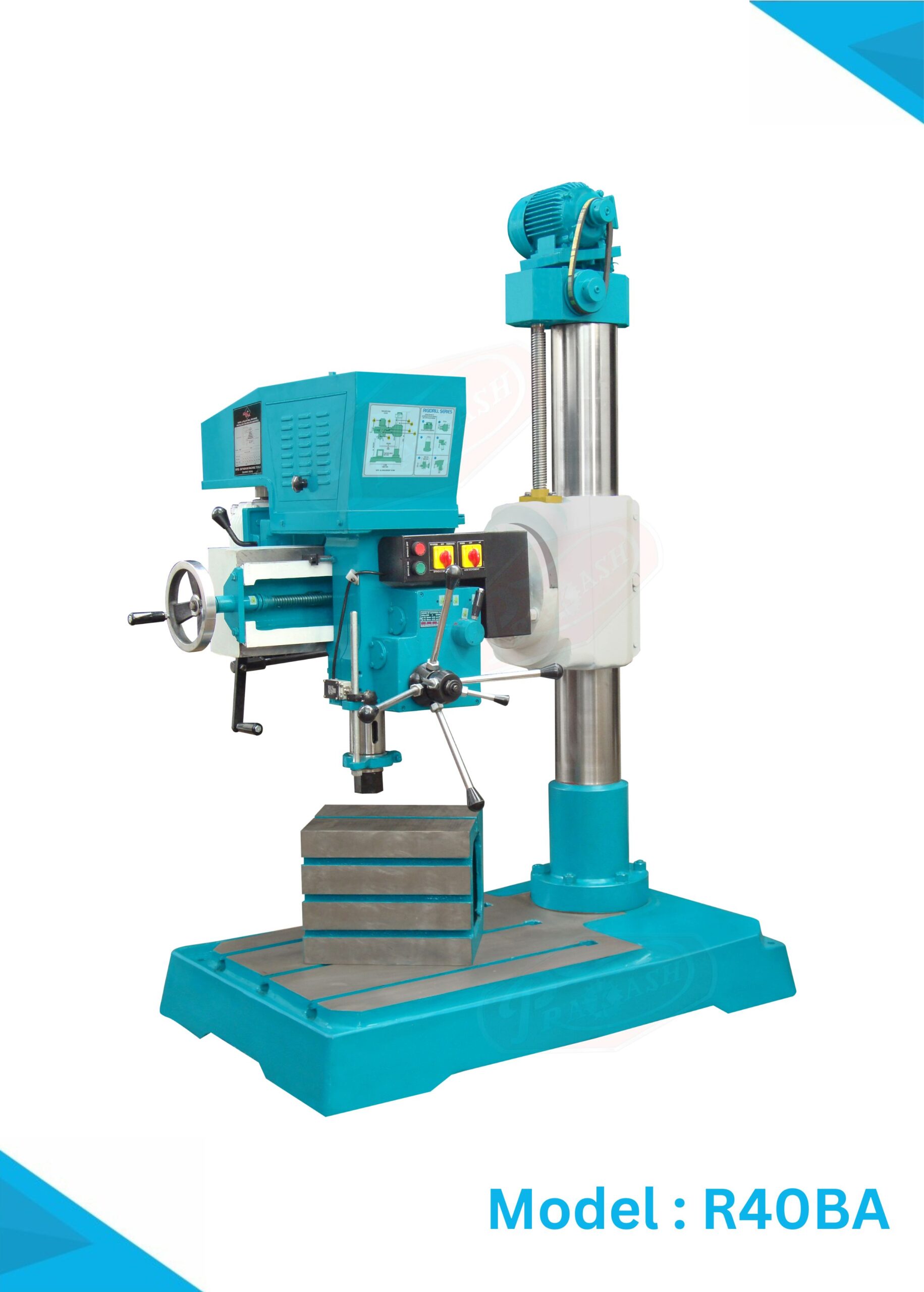

Model : R40BA RADIAL DRILL MACHINES
Our 40 mm back geared Auto-Feed radial drilling machine specially made for SME industries capable of providing the best-in-class feature and capacity to increase the productivity in the company.
Key Features:
-
905 mm Center Distance
-
2.5 Module Autofeed Gears in R40BA
-
Taper Cone Mechanism of Autofeed
-
Taper Wedge
-
170 mm Column Diameter
-
Longer Gun Metal Nut for Lifting of Arm
-
All other R40 Series Features
Standard Accessories:
-
Motor Pulley
-
Electrical Panel Board in R40BA
Extra Accessories:
-
Electrical Motors ● “V” Belts
-
Coolant Pump with coolant tank
-
Drill Chuck & Arbour ● Box Table
-
Tapping Control Panel Board
-
Keyless Drill Chuck & Arbour
-
Extra Long column
-
Tapping Attachment (Mechanical)
Specifications:
| Description | R40BA | |
| CAPACITY | Drilling in M.S. | 40 |
| Drilling in C.I. | 45 | |
| Tapping in M.S. | 20 | |
| Rough Boring in M.S. | 40 | |
| DRILL HEAD | Spindle Travel | 250 |
| Spindle Hole taper | MT-4 | |
| Spindle Speeds (RPM x steps) | 88 – 2600 x 8 | |
| Diameter of RAM | 78 | |
| Spindle Autofeed Ranges | AutoFeed / 0.05 & 0.09 | |
| WORKING RANGE | Max/Min Dist. Spindle nose to base | 850/250 |
| Max/Min Dist. Spindle center to column | 905/385 | |
| Max. Drilling Radius | 990 | |
| Machine Measurement (LxBxH) | 1350x850x1825 | |
| Diameter of Column | 170 | |
| Work Table | 300x300x385 | |
| All for sides useful | ||
| POWER | Drill Head Motor | 1.5 HP /1440 RPM |
| Lifting Motor | 0.5 HP / 1440 RPM | |
| Lifting Motor V- belt | B-23/B-24 | |
| Head Motor V-belt | B – 46 |
