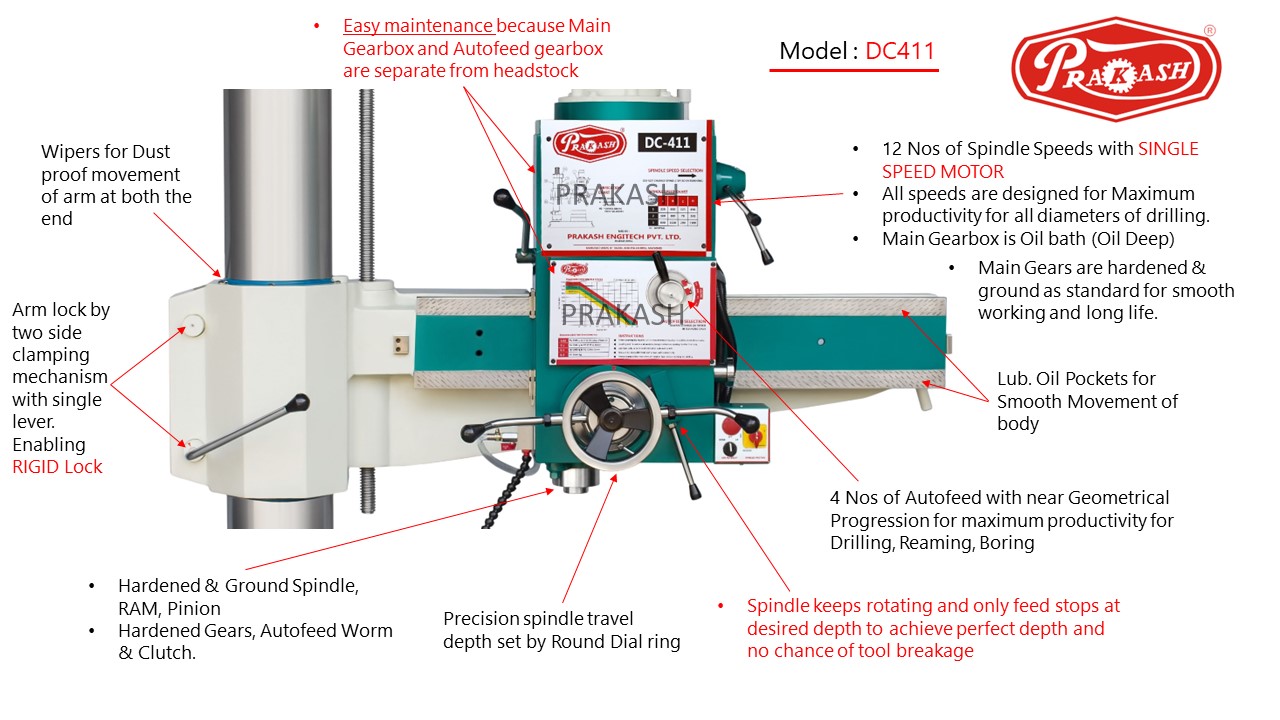

MODEL : DC411 RADIAL DRILL MACHINES
Introducing Our 42 mm capacity double column all geared Auto Feed radial drilling machine. The most preferred machine for PEB structure manufacturers, defence and aerospace industries having the best in class an unbeatable specification in the drilling machine Industry.




Key Features:

  • 1133 mm Drilling Radius
  • 745 Horizontal Travel & 740 Vertical Travel
  • 225 mm Column Dia,
  • 80 mm Spindle Dia
  • 12 Nos of Speed with Single Speed Motor
  • 4 Nos of Autofeed
  • Job height of 1000mm approx. can be accommodated.



  Standard Accessories:

  • 2HP & Electric Motor
  • Electrical Panel Board
  • Coolant Pump & Spout Assembly



   Extra Accessories:

  • Drill Chuck & Arbor
  • Keyless Drill Chuck & Arbor
  • Work Table Drill vice
  • Tapping Attachment (Mechanical)




Specifications


Description

DC -411

  CAPACITY

Drilling in M.S.

42(1 5/8” )

Drilling in C.I.

50

Rough Boring in M.S.

60

Tapping in M.S.

25
   DRILL         HEAD

Spindle Taper

MT-4

Spindle Travel

225

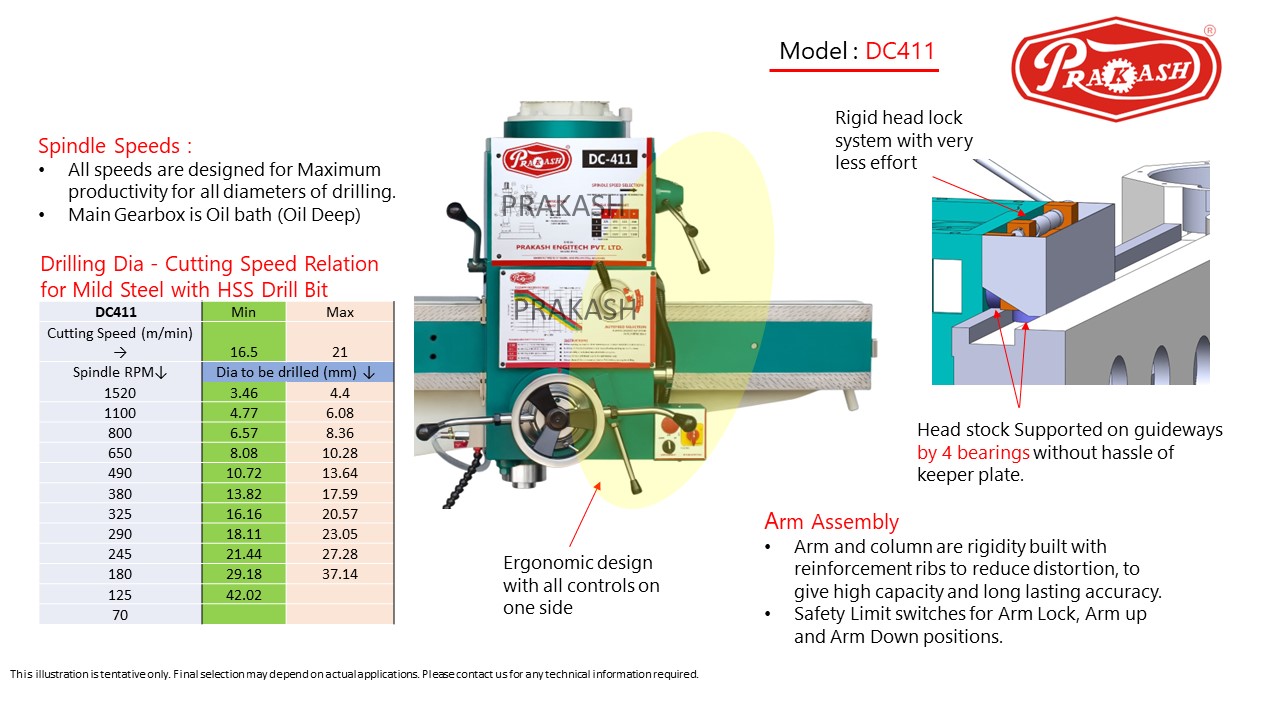

Spindle Speed (RPM x Steps)

12 Steps

70, 125, 180, 245, 290, 325, 380, 490,650, 800, 1100, 1520

Diameter of Ram (quill)

80

Spindle Autofeed Ranges (mm/rev.)

4 Steps

0.06, 0.12, 0.20, 0.30


Description

DC411

WORKING    RANGE

Max/Min Dist. Spindle nose base

1135/395

Vertical Travel of Arm

740

Max/Min Dist. Spindle centre to column

1020/275

Horizontal Travel of Arm

745

Max. Drilling Radius

1133

Machine Measurement(LxBxH)

1600x850x2190

Diameter of Column

225

Work Table

550x450x400

Coolant Tank

770x450x400 (50 Litres)

    POWER

Drill Head Motor

2HP (1.5 KW)

 960 rpm (Single Speed Motor)

  { Optional : 3HP/960         RPM }

Lifting Motor (LxBxH)

1HP (0.75 KW) 960 RPM
